T3
Linux POS Terminal
Omnichannel payment method
Let efficient cashiers run smoothly to the end
Supermarkets
Ticket & Hotel
Health care
Handwriting
Color B&W Screen
Support Card Swiping
NFC
Card Support
CPU Processor
Support SIM Expansion
Super Battery Life
Positioning
Support QR Code

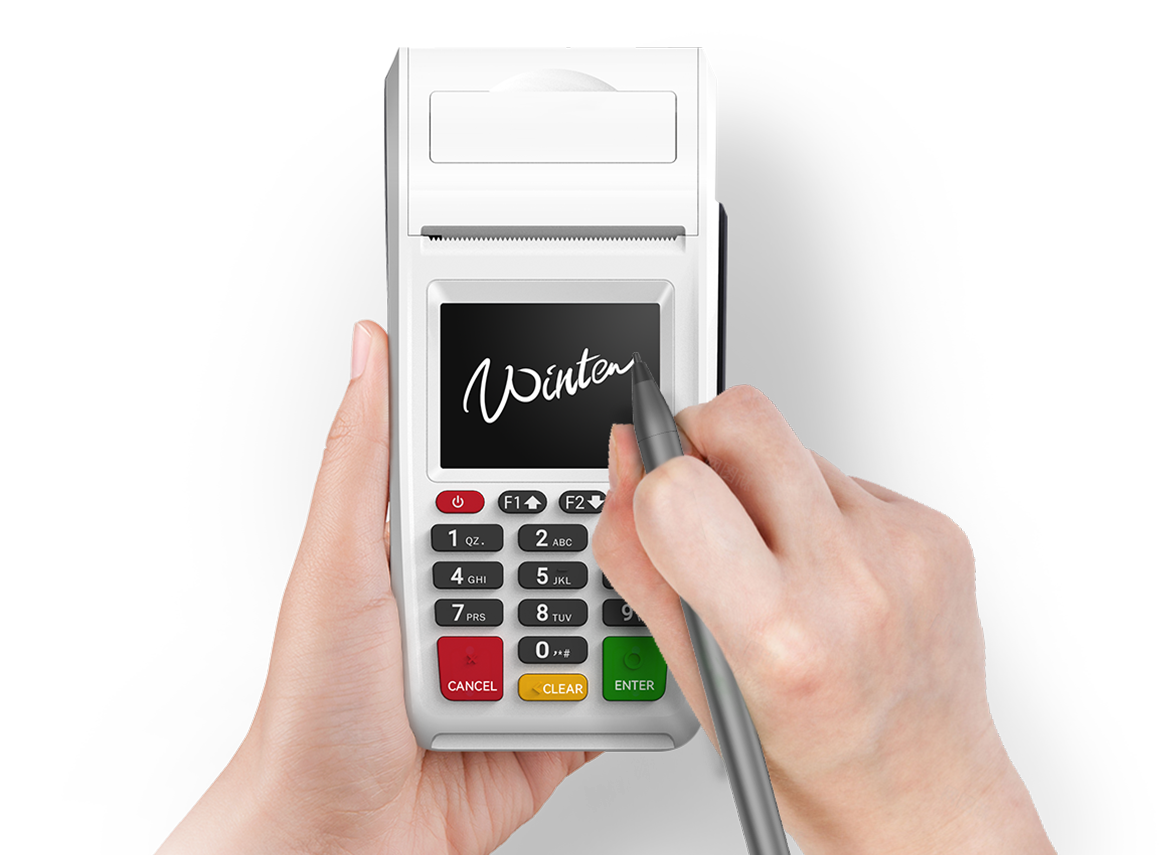

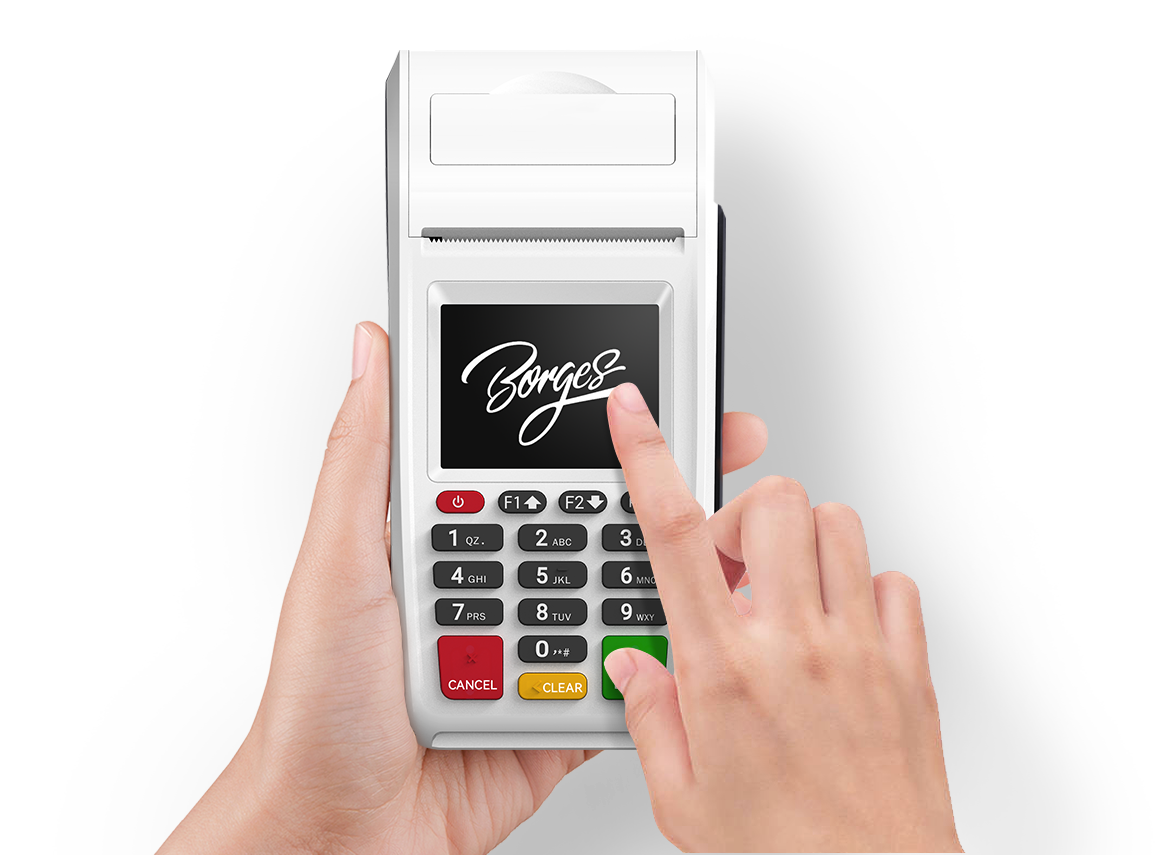

Simple operation and sensitive touch
Resistive touch screen, support electronic signature/hand input
Support handwritten
signature
Capacitive pen signature
support
More communication, more convenience
Support WiFi, Bluetooth, 2G/3G/4G network
to ensure mobile transactions anytime, anywhere
to ensure mobile transactions anytime, anywhere
2G/3G/4G
Wi-Fi
Bluetooth

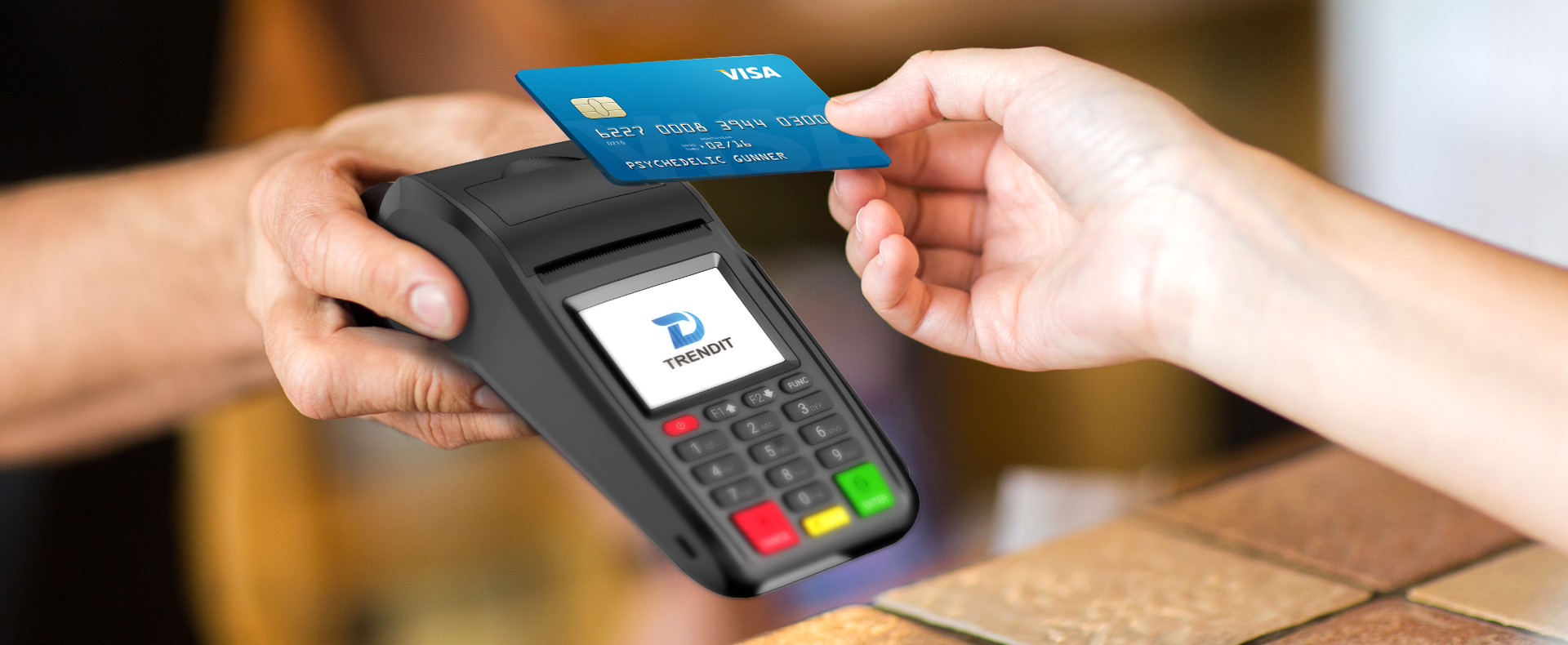

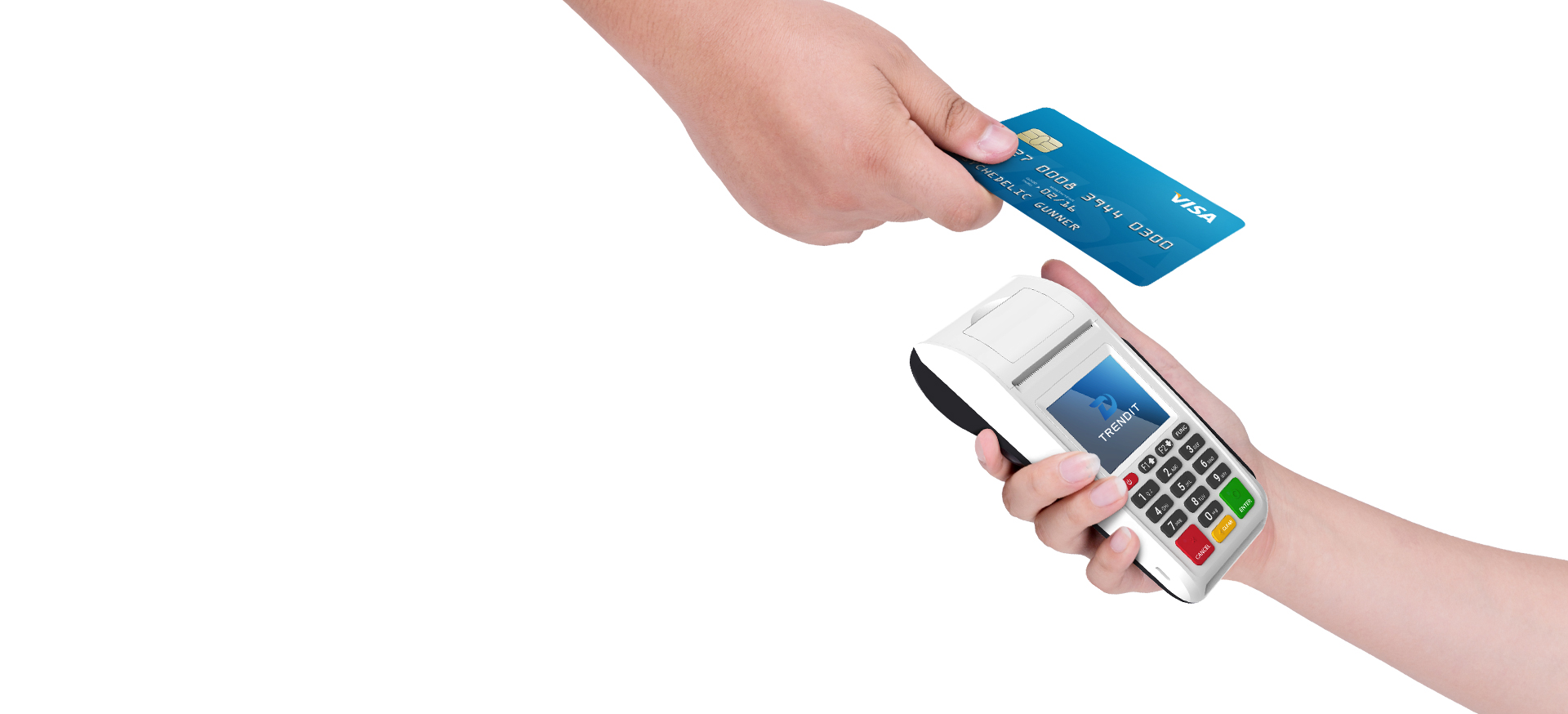

Multiple payment methods
Support magnetic stripe card, IC card,
NFC, QR code omnichannel collection.
NFC, QR code omnichannel collection.
Swipe
Card
NFC
QR code
Financial-grade comprehensive certification
to ensure payment security
to ensure payment security

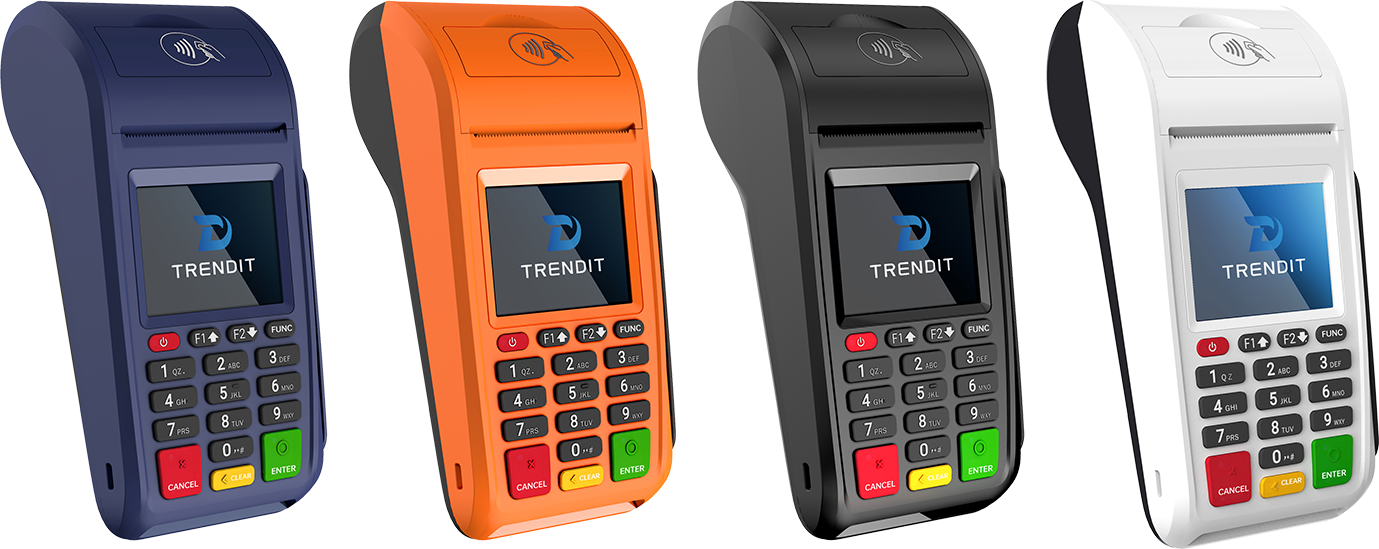

Beginning with appearance, loyal to strength
Simple and elegant appearance, easy to hold, portable and stable in performance.

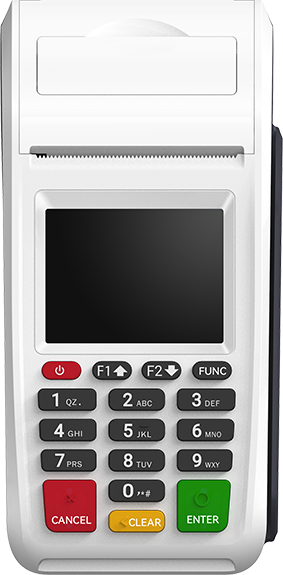

Product Parameters
T3
Processor
Quad-core Cortex-A35,1.3GHz
Memory
128MB RAM+128MB Flash
Operating system
Linux
Screen
2.4-inch color display, support color/black and white Resolution 320*240 Brightness adjustable
Touch screen
Resistive touch screen, Support electronic signature, handwriting input
Button
10 number keys, 1 switch key, 6 function keys
Password keyboard
Built-in PIN pad
SIM card holder
Support Micro-SIM card insertion and removal, support eSIM card sticker
Wireless communication
2G/4G, 3G(Optional), WiFi(Optional), Bluetooth(Optional)
Battery life
When fully charged, more than 300 transactions can be completed
Working environment
Working temperature: -5℃~45℃
Storage temperature: -20℃~55℃
Relative humidity: 5%~95% (non-condensing)
Storage temperature: -20℃~55℃
Relative humidity: 5%~95% (non-condensing)
Trouble-free usage time
Average trouble-free working time is more than 50,000 hours
Product weight
320g (including battery)
Magnetic card reader
Support magnetic stripe card data reading, support two-way card swiping, magnetic stripe card reader life more than 500,000 times
Contactless card reader (optional)
Support optional built-in contactless card reader contactless IC card, in line with QPBOC L1&L2 standard, the card reading distance should not be less than 4CM, the contactless card transaction time < 150MS (in line with the latest UnionPay requirements); the card reading area has Standard and eye-catching contactless card logo; avoid multi-interface cards from reading contactless cards when performing other types of card operations (in line with the company's standards at the time of project establishment); multiple cards placed in the card reading area at the same time should be able to identify and flexibly notify the difference as needed
IC card reader
Standard IC card, conforming to EMV PBOC L1&L2 standard, there is a sign clearly indicating the card insertion direction at the card socket, and there is a clear card guide table/slot design (the card inserter does not need to align the card slot deliberately when inserting the card). More than 100,000 times of plugging and unplugging
