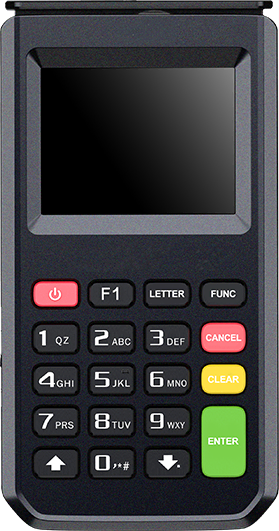

T5 E-Signature POS Terminal
Safeguard your card swiping
and payment security
Card swiping
Super battery life
CPU Processor
Handwriting
Color B&W Screen
Support Card Swiping
NFC
Card Support
CPU Processor
Support SIM Expansion
Super Battery Life
Positioning
WIFI Wireless
Support electronic signature on touch screen
Resistive touch screen，Support e-signature and manual input
Support handwritten
signature
Capacitive pen signature
support

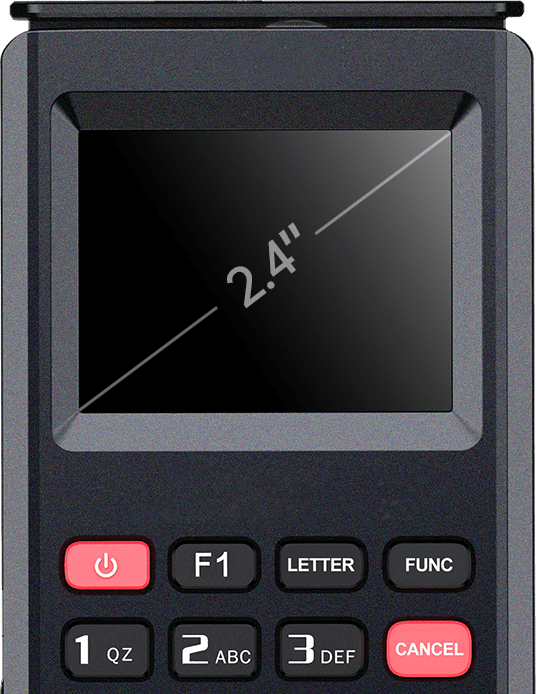

2.4 inch large
color screen
color screen
HD display
High resolution, adjustable
screen brightness
High resolution, adjustable
screen brightness
Support color screen and black and white screen
Support multiple communication methods,
which makes the network unimpeded.
which makes the network unimpeded.
Support 4G / 2G / WiFi
Financial-grade comprehensive certification
to ensure payment security
to ensure payment security
Dual CPU chips
Dual encryption design
Dual encryption design
Safeguard your card swiping
and payment security
and payment security
High-performance CPU
Secure Encrypted CPU
Product Parameters
T5
Processor
Dual CPU:High performance CPU、Module + Secure CPU
Memory
1M FLASH+128KB RAM(Scalable)
Multi-application
Multi-application architecture Support multiple applications
Display
2.4”Color display, Support black and white screen, 320*240 Pixels, Brightness adjustable
Touch screen
Resistive touch screen, Support e-signature and manual input
Physical keypad
19Keys:0~9, Enter, Clear, Cancel, Function, F1, Alphabet, Power, Up, Down
Magnetic card reader
Magnetic stripe card support , Bi-directional, Can be used more than 500,000 times
Password keyboard
Built-in PIN pad
Battery
3.7V, 500mAh, Rechargeable battery
Communications
Support 4G, 2G, WIFI
Positioning function
Base station positioning function
SIM card holder
1 SIM card holder
Storage environment
Working temperature: -5℃~45℃
Storage temperature: -20℃~55℃
Relative humidity: 5%~95% (non-condensing)
Storage temperature: -20℃~55℃
Relative humidity: 5%~95% (non-condensing)
Trouble-free usage time
Average over 50,000 hours
Weight
155g
Beep
Buzzer
Ports
1 Micri-USB interface
Power plug
5V/1A Standard adapter (optional)
IC card reader
Standard IC card, More than 100,000 times of plugging and unplugging
Contactless card reader (optional)
QPBOCL1&L2 standard | The reading distance is not less than 4cm. | Transaction duration is less than 150ms
